Double heads LED Operation Lamp MXLED700/500

Product Categories

Shandong Mango Medical Technology Co., Ltd.

Contact Now

Name: Double heads LED Operation Lamp MXLED700500
Brand: Mango
Price: 2000 USD

Brand Name : Mango

Model Number : MXLED700/500

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : 2000~2500USD/unit

Payment Terms : T/T

Supply Ability : 100 units/week

Delivery Time : 10-15 days

Packaging Details : Plywood case + carton

Arm Joint Type : Spring Type Joint Arms

Classification : Class 1 (MDD 93/42 EEC)

Standards : EN 60601-1, EN 60601-2-41

Illumination(LX) : 10000-160000

Color Temp : 3500k~5000K

CRI(Ra) : ≥85

Spot Diameter (mm) : 150-300

Lighting Depth (mm) : ≥800mm

App. Model : background light/surface/deep cavity /normal mode

Dimming Control : 10 shift scales

Temp Rise at Surgeon's Head (degrees Celsius) : ≤1

Temp Rise (degrees Celsius) : ≤2

Power Supply : 110-130/220-240 V, 50/60 Hz

Max. power consumption : 150VA/150VA

Bulb service life : more than 50,000 hours

Bulb number : 68/45pcs

Warranty : 1 Year

Ceiling height for installation(cm) : 270-320

Contact Now

Features:

High Illumination Output: Central illuminance ranges from 110,000 to 160,000 lux with 10-step adjustable brightness.
Long Service Life: LED service life over 60,000 hours to cut maintenance costs.
Adjustable Color Temperature: CCT adjustable between 3500K–5000K in 6 variable grades.
Authoritative Certifications: Compliant with CE and ISO 13485 medical standards.
Customization Available: OEM & ODM supported with full certification documentation.
Full Standard Package: Complete with base, balance arms, control handles and installation tools for instant assembly.

Specifications

Lamp head model	MXLED 700	MXLED500
Number of lamp beads	68	68
Center Illuminance(LUX)	110000-160000 (10 levels adjustable)	110000-160000 (10 levels adjustable)
Color Temperature(K)	3500-5000 (6 levels adjustable)	3500-5000 (6 levels adjustable)
Color Rendering Index (Ra)	≥96%	≥96%
Spot diameter (mm)	150-300	150-300
Light beam depth (mm)	≥1200	≥1200
Irradiance(W/m2)	≤400	≤400
Head temperature rise(ºC)	≤1	≤1
Temperature rise in the surgical working area	≤2	≤2
Operating radius(mm)	≥2200	≥2200
Working radius(mm)	600-1800	600-1800
Supply voltage	220V±22V 50HZ±1HZ	220V±22V 50HZ±1HZ
Input Power	150VA	150VA
Average life-span of lamp(h)	≥60000	≥60000
Lamp power	1W	1W
installation height(mm)	2700-3200	2700-3200

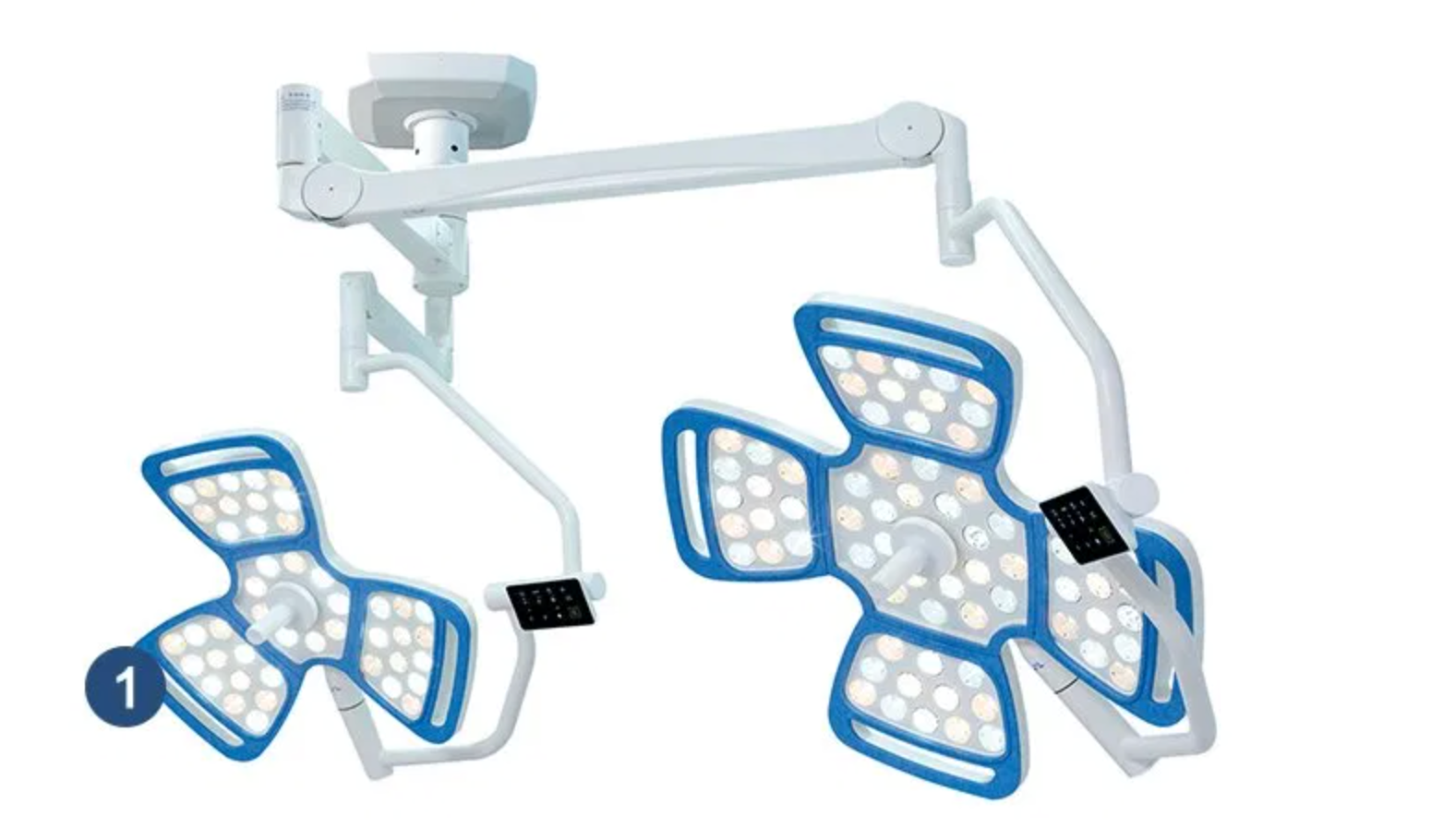

Double heads LED Operation Lamp MXLED700/500 Images
